Equipment

LNL Containers

Dry Van

General Use:

Suitable for commodities in bundles, cartons, boxes, loose cargo, bulk, furniture, etc. (containers can be modified into hanger containers suitable for garments).

Size Weight (Kgs, Lbs) Internal Dimensions (MM,Ft,Inches) Door Openings (MM,Ft,Inches) Vol(m3 fl3) notes
Feet Max.Gross Weight Tare Weight Max Payload Length Width Height Width Height Capacity All steel construction
20 24,000 2,200 21,800 5,902 2,350 2,392 2,341 2,280 33.2
52,910 4,850 48,060 19' 4
23/64"
7' 8
33/64"
7' 10
11/64"
7' 8
11/64"
7' 5
49/64"
1,172
30,480 2,250 28,230 5,902 2,350 2,392 2,341 2,280 33.2
67,200 4,960 62,240 19' 4
23/64"
7' 8
33/64"
7' 10
11/64"
7' 8
11/64"
7' 5 49/64" 1,172
40 30,480 3,700 26,780 12,032 2,350 2,390 2,338 2,280 67.6
67,200 8,380 58,820 39' 5
45/64"
7' 8
33/64"
7' 10
7/64"
7' 8
3/64"
7' 5
49/64"
2,387

All information in this guide is general data only. The accurate max.gross Weight should be according to the container CSC plate. The dimensions and weights are based on manufacture's specifications. Tolerance factor must always be taken into account by supplier

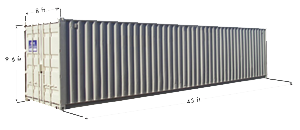

High Cube

General Use:

Suitable for commodities in bundles, cartons, boxes, loose cargo, bulk, furniture, etc.(containers can be modified into hanger containers suitable for garments).

Size Weight (Kgs, Lbs) Internal Dimensions (MM,Ft,Inches) Door Openings (MM,Ft,Inches) Vol(m3 fl3) notes
Feet Max.Gross Weight Tare Weight Max Payload Length Width Height Width Height Capacity All steel construction
40 30,480 3,900 26,580 12,033 2,350 2,695.5 2,338 2,585 76.2
67,200 8,600 58,600 39' 5
45/64"
7' 8
33/64"
8' 10
1/8"
7' 8
3/64"
8' 5
49/64"
2,690
32,500 3,920 28,580 12,033 2,350 2,695.5 2,338 2,585 76.4
71,650 8,640 63,010 39' 5
45/64"
7' 8
33/64"
8' 10
1/8"
7' 8
3/64"
8' 5
49/64"
2,690
20 30,480 4,800 25,680 13,556 2,350 2,698 2,338 2,585 86.0
67,200 10,580 56,620 44' 5 11/16 8 33/64 10 7/32 7' 8 3/64" 8' 5 49/64" 3,040

All information in this guide is general data only. The accurate max.gross Weight should be according to the container CSC plate. The dimensions and weights are based on manufacture's specifications. Tolerance factor must always be taken into account by supplier.

Open Top

General Use:

Suitable for tall or large cargo that cannot be loaded through the container doors, such as machinery, sheet glass and building materials.

Size Weight (Kgs, Lbs) Internal Dimensions (MM,Ft,Inches) Door Openings (MM,Ft,Inches) Vol(m3 fl3) notes
Feet Max.Gross Weight Tare Weight Max Payload Length Width Height Width Height Capacity Door headlock removable steel
20 24,000 2,140 21,860 5,894 2,344 2,347 2.336 2,275 31.5
52,910 4,717 48,192 19' 4
1/8"
7' 8
5/16"
7' 8
3/8"
7' 7
15/16"
7' 5
1/2"
1,112
20 30,480 2,250 28,230 5,894 2,344 2,347 2.336 2,275 31.5
67,200 4,960 62,240 19' 4 1/8" 7' 8 5/16" 7' 8 3/8" 7' 7 15/16" 7' 5 1/2" 1,112
40 30,480 3,800 26,680 12,027 2,344 2,347 2,336 2,275 67.0
67,200 8,158 59,049 39' 5
1/2"
7' 8
5/16"
7' 8
3/8"
7' 7
15/16"
7' 5
1/2"
2,365.6

All information in this guide is general data only. The accurate max.gross Weight should be according to the container CSC plate. The dimensions and weights are based on manufacture's specifications. Tolerance factor must always be taken into account by supplier.

Flexitank

General Use:

Flexitank is a hermetic sealed, collapsible and flexible bag/bladder which is stuffed in a 20’ DV Container, and rely on a 20' dry-van container walls and flooring, to contain the bulk liquid cargo bag. The flexitank’s size/volume can range between 16,000-24,000 liters.

Installation of Flexitank in the container takes about 20-30 minutes, after which it is ready for filling the liquid cargo which takes another about 30-40 minutes. After filling the cargo the container with your cargo is ready to be shipped. The container can be transported by road, railway or sea. The container with your cargo can be delivered to any point worldwide. In place of destination you or your Consignee/Receivers can unload a cargo quickly and without any losses, by using just the pump. Flexitanks are disposable and can be recycled.

What cargo can be shipped inside flexitanks?

In Flexitank it is possible to transport almost any non-hazardous liquids, both for industrial use and food application, such as: food, edible and animal oils and fats, juices concentrates, juices, syrups, water, wine, food additives, pharmaceutical, oils, malt, sorbitol, industrial oils, additives, cleaning liquid, emulsions, glycerin, ink, fertilizers, latex, etc.

Some liquids properties are to get thick during storage or at in low temperature. This will slow down the effective emptying of the cargo from the Flexitanks, for this purpose there are heating pads which are installed together with FLEXITANK. It is used just before start of emptying using steam or hot water inside, in order to increase temperature of a cargo.

Reefer

General Use:

Suitable for transporting perishable cargo such as vegetables, fruit, meat, etc. Same as reefer 40' (perishable cargo such as vegetables, fruit, meat) but higher volume capacity.

Size Weight (Kgs, Lbs) Internal Dimensions (MM,Ft,Inches) Door Openings (MM,Ft,Inches) Vol(m3 fl3) notes
Feet Max.Gross Weight Tare Weight Max Payload Length Width Height Width Height Capacity Aluminium Aluminium& Stainless Steel
20 24,000 2,850 21,150 5,449 2,286 2,122 2,294 2,266 26.1
52,910 6,280 46,630 17' 10
1/2"
7' 6" 6' 11
1/2"
7' 6
10/32"
7' 5 1/5" 922
20 30,480 3,080 27,400 5,451 2,290 2,263 2,290 2,252 26.2
67,200 6,780 60,376 17' 10 5/8" 7' 6 3/16" 7' 5 1/8" 7' 6 3/16" 7' 4 11/16" 925

All information in this guide is general data only. The accurate max.gross Weight should be according to the container CSC plate. The dimensions and weights are based on manufacture's specifications. Tolerance factor must always be taken into account by supplier.

Reefer High Cube

General Use:

Suitable for transporting perishable cargo such as vegetables, fruit, meat, etc. Same as reefer 40' (perishable cargo such as vegetables, fruit, meat) but higher volume capacity.

Size Weight (Kgs, Lbs) Internal Dimensions (MM,Ft,Inches) Door Openings (MM,Ft,Inches) Vol(m3 fl3) notes
Feet Max.Gross Weight Tare Weight Max Payload Length Width Height Width Height Capacity Aluminium Aluminium& Stainless Steel
40 32,500 4,650 27,850 11,583 2,286 2,404 2,294 2,500 63.5
71,650 10,250 61,400 38' 7' 6" 8' 10 5/8" 7' 6 5/16" 8' 2 3/4" 2,242
40 30,000 4,900 29,100 11,590 2,284 2,548 2,290 2,569 67.5
74,960 10,800 64,160 38' 19/64" 7' 5 59/64" 8' 4 7/16" 7' 6 5/32" 8' 5 9/64" 2,384

All information in this guide is general data only. The accurate max.gross Weight should be according to the container CSC plate. The dimensions and weights are based on manufacture's specifications. Tolerance factor must always be taken into account by supplier.

Flat rack

General Use:

Used for carrying oddly shaped and oversize loads such as machinery, cables, drums, metal sheets and steel coils, heavy vehicles, timber and forest products, or yachts.Flat Rack containers are also known as Flats (FL).

Size Weight (Kgs, Lbs) Internal Dimensions (MM,Ft,Inches) notes
Feet Max.Gross Weight Tare Weight Max Payload Length Width Height Steel
20 34,000 2,890 31,110 5,638 2,226 2,231
74,950 6,370 68,580 19' 4 1/8" 7' 8 5/16" 7' 8 3/8"
40 45,000 4,950 40,050 12,064 2,369 1,943
99,202 11,683 87,518 19' 4 1/8" 7' 8 5/16" 6' 4 1/2"
40 50,000 5,000 45,000 11,980
(Between Headers)
2,378
(Deck Width)
1,960
110,230 11,023 99,207 11,762
(Between Posts)
7' 8 5/16"
(Between Stanchions)
6' 5 1/8"
(Loading)

All information in this guide is general data only. The accurate max.gross Weight should be according to the container CSC plate. The dimensions and weights are based on manufacture's specifications. Tolerance factor must always be taken into account by supplier.
